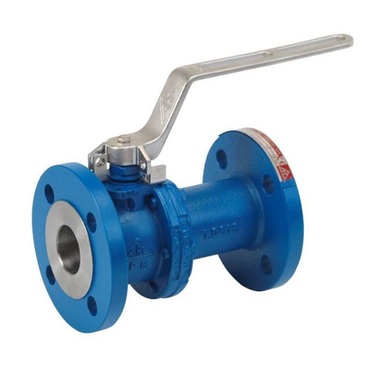

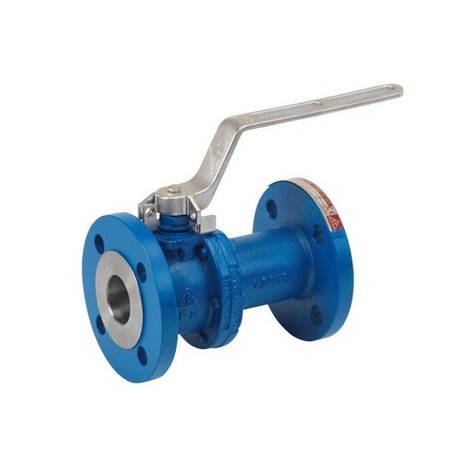

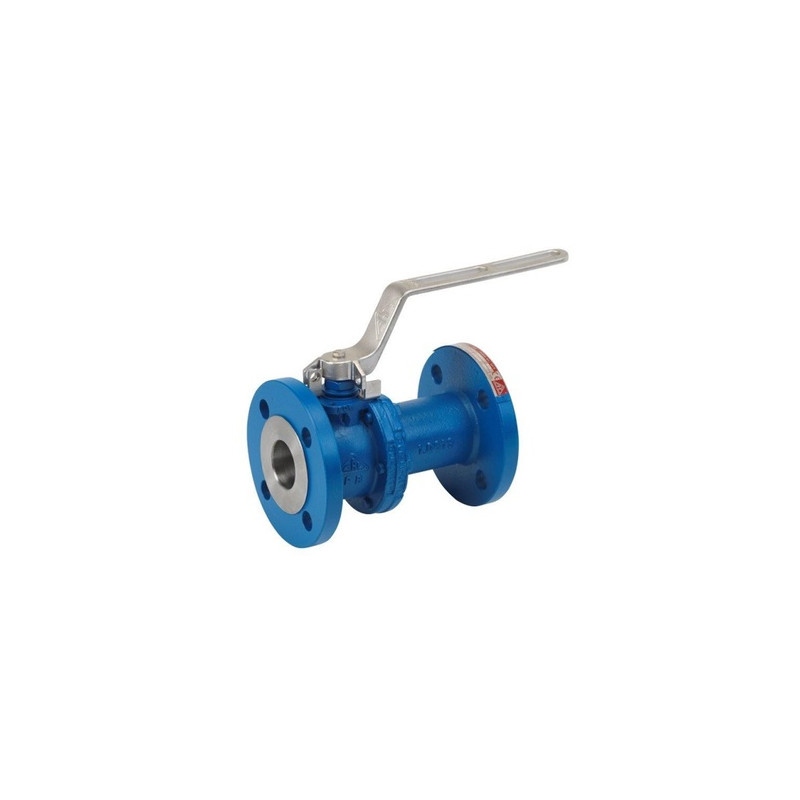

FBL PN40 1.0619 316 PTFE FS DN 20 CAPI

• Design
• Standards
• Features
• Features
• Options
• Options
• Approvals

Full bore, split body, floating ball, relief seats, anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.

Design	ISO 17292 / EN 1983
End	Flanges acc. to: EN 1092 part 1
Face to face	EN 558-1 serie 1
Top flange	ISO 5211
Testings	ISO 5208 / EN 12266/1
Fire safe tested	ISO 10497

High performance low emission double stuffing box.
Internal wetted parts are in acc. to NACE Standard MR0103.

HigHigh performance low emission double stuffing box.
Internal wetted parts are in acc. to NACE Standard MR0103.

Cryogenic service
Emissions control port
Metal to Metal tightness
Supported mounted ball DN 150 to DN 200

Cryogenic service
Emissions control port
Metal to metal tigthness

Fire safe
	Bureau Veritas
Type approval
	Det Norske Veritas
	Germanischer Lloyd
	Bureau Veritas
	GOST-R Rostechnadzor Permit
	Shell Global Solutions
	ABS
	Russian Maritime Register of Shipping
Clean air
	TA-Luft (TÜV-Südwest)
	ISO 15848-1 class BH (Bureau Veritas)
SIL certification
	Exida Certification-SIL 3
