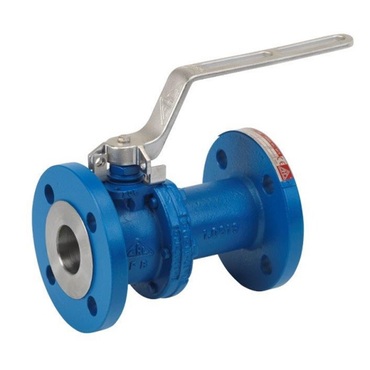

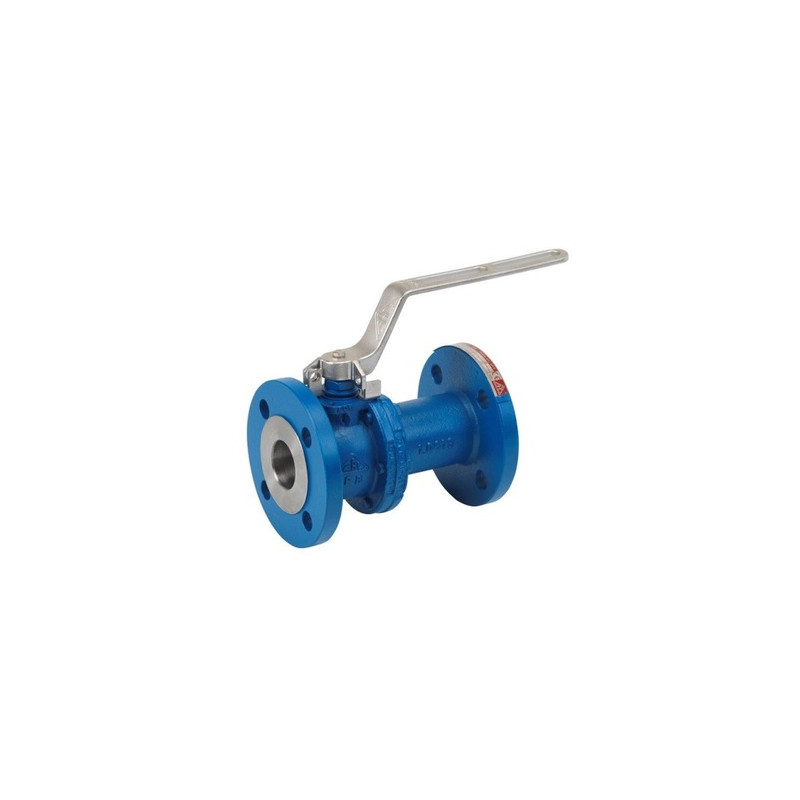

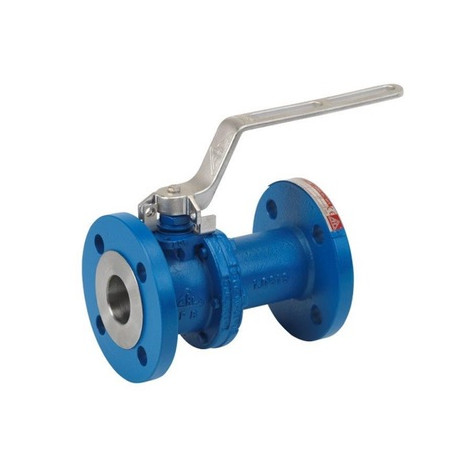

FB #150 WCC 316 PTFE FS 1.1/2" CAPI

• Design
• Standards
• Features
• Options
• Approvals

Full bore, split body, floating ball, high performance low emission double stuffing box, relief seats, anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.

Design	ISO 17292
End	Flanges acc. to: ASME B16.5 RF
Face to face	ASME B16.10 long pattern
Top flange	ISO 5211
Testings	ISO 5208
Fire safe tested	ISO 10497

High performance low emission double stuffing box.
Internal wetted parts are in acc. to NACE Standard MR0103.

API 6D
Cryogenic service
Emissions control port
Internal coating FBE / ECTFE
Metal to metal tightness

Fire safe
	Bureau Veritas
Type approval
	Det Norske Veritas
	Germanischer Lloyd
	Bureau Veritas
	GOST-R Rostechnadzor permit
	Shell Global Solutions
	Nippon Kaji Kyokai
	ABS
	Russian Maritie Register of Shipping
Clean air
	TA-Luft (TÜV-Südwest)
	ISO 15848-1 class BH (Bureau Veritas)
SIL Certification
	Exida Certification - SIL 3
