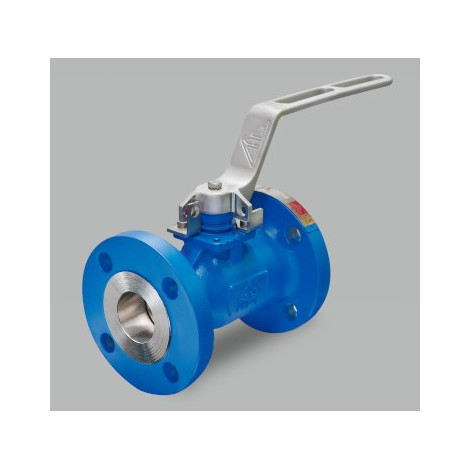

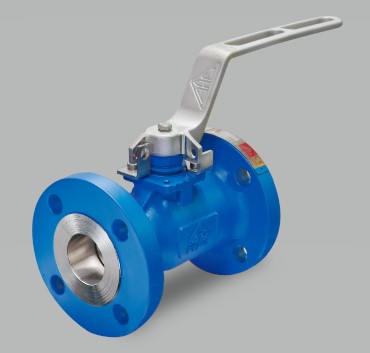

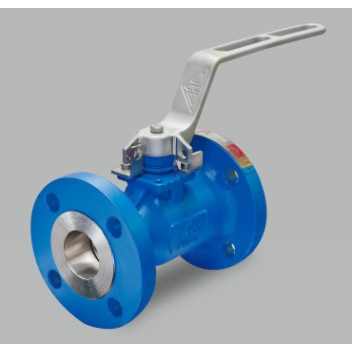

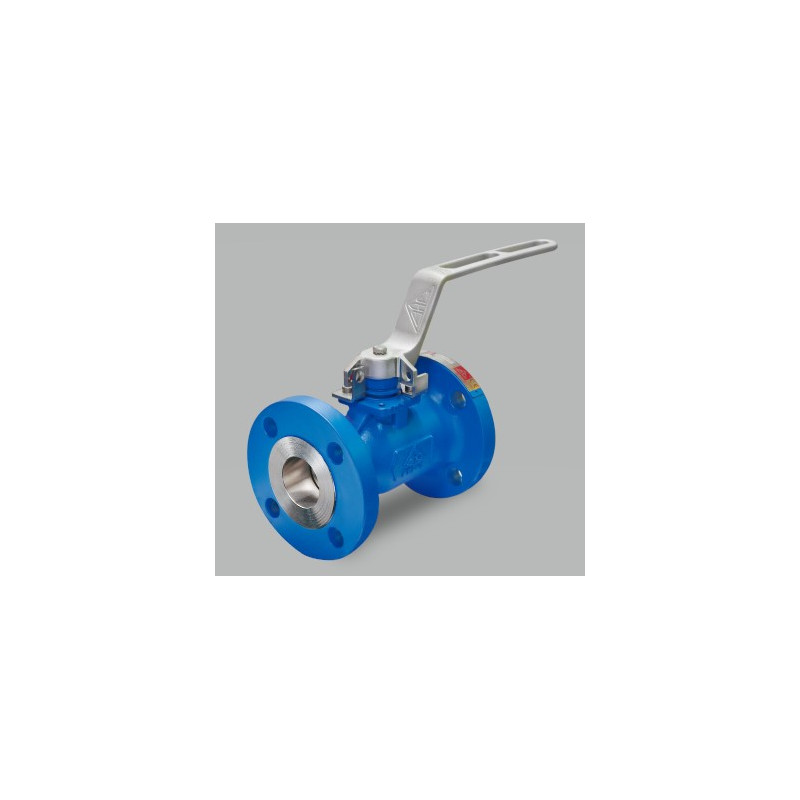

PQR-i #150 WCC 316 PTFE FS 1" CAPI

• Design
• Standards
• Features
• Options
• Approvals

Reduced bore, one piece body, floating ball, relief seats, anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.

Design	ISO 17292
End	Flanges acc. to: ASME B16.5 RF
Face to face	ASME B16.10 short pattern
Top flange	ISO 5211
Testings	ISO 5208
Fire safe tested	ISO 10497 and API 607

High performance, low emission double stuffing box.

Internal wetted parts are acc. NACE Standard MR0103.

API 6D

Cryogenic service
Emissions control port

Fire safe
	Bureau Veritas
Type approval
	Det Norske Veritas
	Germanischer Lloyd
	Bureau Veritas
	GOST-R Rostechnadzor permit
	Shell Global Solutions
	RINA
	Nippon Kaji Kyokai
	ABS
	Russian Maritie Register of Shipping
Clean air
	TA-Luft (TÜV-Südwest)
SIL Certification
	Exida Certification - SIL 3
