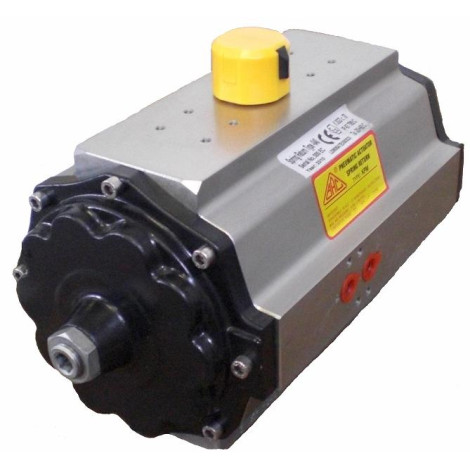

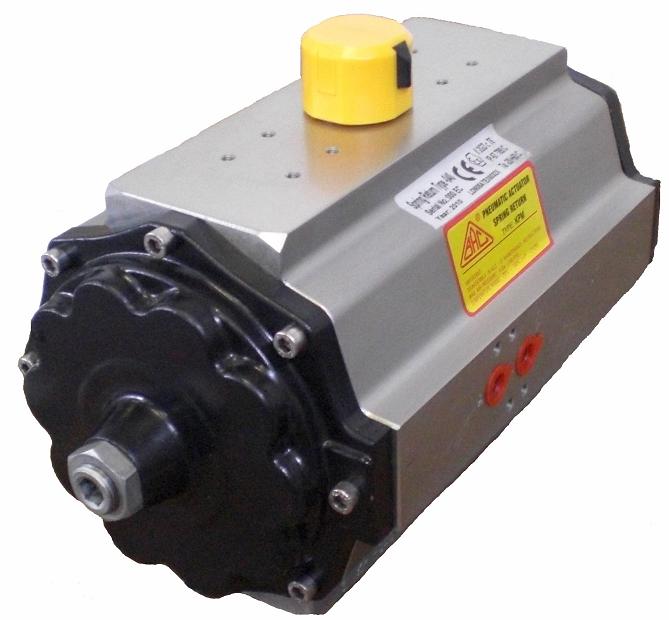

KPM 500 :FB DN 8" #300/PN40 + PQR-i DN 10" #300

• Standards
• Features
• Approvals

Top Falnge ISO 5211 - VDI / VDE 3845
Air connection VDI / VDE 3845



Control by twin piston rack and pinion actuator development, the design incorporates PTFE pisto nearing, top flange ISO 521

Pressure range: 2 - 6 bars

Media: Air or non corrosive Gas

Temperature: -20ºC to 100ºC

Rotation: Clockwise with port "C" pressuresed

Movement: 90º with a ±2 1/2º tolerance at each end

AIR FAIL CLOSE

Actuators calculated with air supply at 6bars

ATEX 94/9/EC
